Nguyen Fittings and Plates, located in Da Nang, Vietnam, is a reputable manufacturer and supplier of **Stainless Steel 309S Pipe Fittings** designed for high-temperature and corrosive environments. These fittings are crafted to ensure secure, leak-free connections while maintaining strength, ductility, and dimensional stability even under thermal stress. With a focus on precision forming, controlled machining, and strict quality control, Nguyen Fittings delivers products with smooth internal surfaces, consistent wall thickness, and a long service life. Catering to the petrochemical, power generation, furnace, heat treatment, and marine industries, Nguyen Fittings offers SS 309S Pipe Fittings that meet global standards for safe, efficient, and durable piping systems.
| Product | Stainless Steel 309S Pipe Fittings |
| Equivalents | (UNS S30908, 1.4833) |
| Standard | ASTM A403 / ASME SA403 |
| Items | Pipe Fittings |
| Size | Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″) |
| Dimensions | ASME / ANSI – B 16.9, ASTM A403 – ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43. |
| Schedule | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. Custom Thickness |
| Fittings Type | Butt Weld, Screwed & Socket Weld, Flanges, Instrumentation |

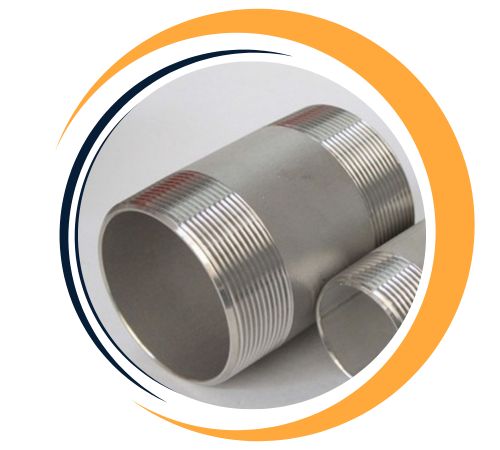

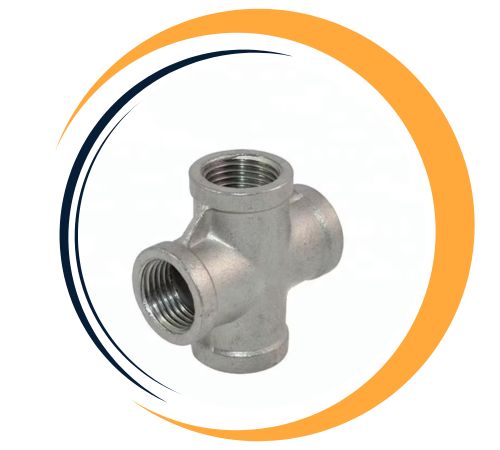

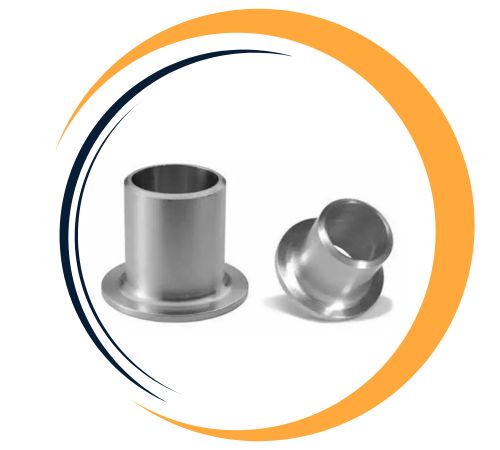

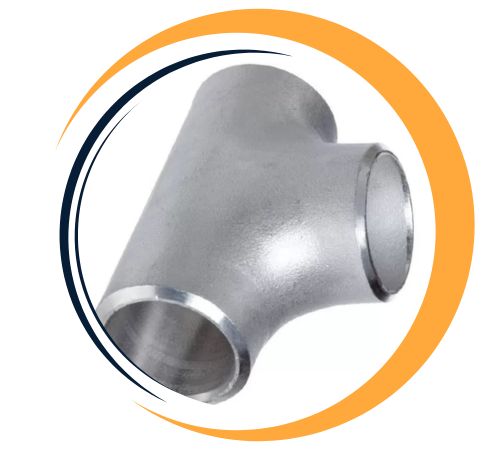

| Other Fittings Type | Elbows, Tees, Reducers, Caps, Stub Ends, Flanges (ANSI, Table E, D and H), Nuts, Bolts, Screws, Threaded Bars, Seamless, Welded, Elbow, Tee, Cross, Concentric & Eccentric Reducer, Pipe End Caps, Stub Ends, Bends, Dairy Fittings, etc. |
| Specifications | ASTM, ASME, DIN, GOST, JIS |
| Certification | EN 10204 |
Stainless Steel 309S Pipe Fittings are a low-carbon version of SS 309, featuring high levels of chromium and nickel. This unique composition provides outstanding resistance to oxidation, scaling, and hot corrosion at elevated temperatures, reaching up to about 1035 °C. The lower carbon content also helps minimize carbide precipitation during welding, which reduces the risk of intergranular corrosion. The alloy maintains high tensile and yield strength, toughness, and stability during thermal cycling, making it an excellent choice for both welded and seamless piping systems.
| ELEMENT | SS 309S |
|---|---|
| NI | 12.0 – 15.0 |
| C | 0.08 max |
| MN | 2.0 max |
| P | 0.045 max |
| S | 0.030 max |
| SI | 1.0 max |
| CR | 22.0 – 24.0 |
| MO | 0.75 max |
| 309 | 309S | |||
|---|---|---|---|---|
| Typical | Minimum | Typical | Minimum | |
| Tensile Strength MPa | 560 | 515 | 540 | 515 |
| Proof Stress(0.2% Offset) MPa | 285 | 205 | 280 | 205 |
| Elongation (Percent in 50mm) | 54 | 40 | 54 | 40 |
| Hardness (Brinell) | 164 | – | 159 | – |
| Endurance (fatigue) limit, MPa | 260 | – | 260 | – |
Nguyen Fittings one of the largest suppliers of Stainless Steel 309S Pipe Fittings in Da Nang, Vietnam. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 309S is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 309S Pipe Fittings in the Vietnam.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 309S Pipe Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| SS 309S | S30908 | 1.4828 |
Stainless Steel 309S Pipe Fittings offer outstanding heat and oxidation resistance, making them ideal for high-temperature applications up to 1000°C. Their low carbon content enhances weldability, reducing the risk of intergranular corrosion and ensuring long-lasting durability. These fittings exhibit excellent resistance to thermal cycling and are highly resistant to corrosion in both acidic and alkaline environments. They maintain structural integrity under high-pressure conditions and offer superior strength, flexibility, and toughness. Stainless Steel 309S fittings are easy to fabricate, providing reliable and efficient solutions for industries such as petrochemical, power generation, and chemical processing.

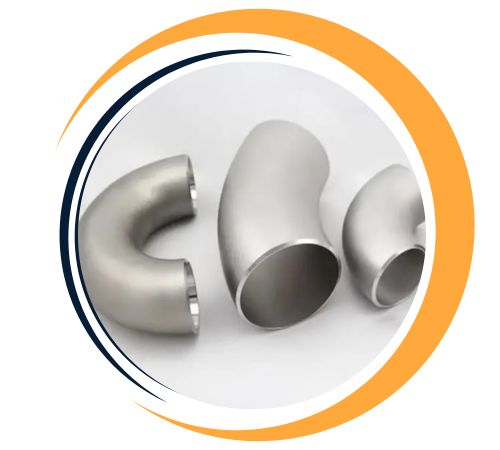

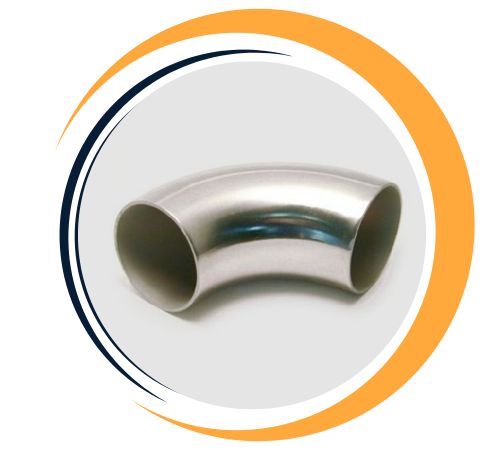

| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes are available for Stainless Steel 309S Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@nguyenfittings.com.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
SS 309S Pipe Fittings find extensive use in furnace components, heat exchangers, boiler baffles, chemical processing equipment, cryogenic structures, refinery piping, and other parts exposed to heat and corrosive substances. They are particularly favored in applications where both heat and corrosion resistance are critical, especially in welded structures that require lower carbon levels. With their impressive high-temperature performance, corrosion resistance, and weldability, SS 309S Pipe Fittings are a dependable choice for engineers and operators looking for long-lasting, safe, and efficient service in challenging industrial piping networks.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
