Nguyen Fittings and Plates, located in Da Nang, Vietnam, is a trusted manufacturer and supplier of high-quality **Stainless Steel 304L Pipe Fittings** tailored for a variety of industrial piping applications. These fittings are designed to offer outstanding corrosion resistance, mechanical strength, and leak-proof performance, especially in welded piping systems. With advanced forming techniques, precision machining, and rigorous quality control, Nguyen Fittings guarantees precise dimensions, a smooth surface finish, and exceptional durability. Catering to industries such as chemical processing, food and beverage, pharmaceuticals, marine, petrochemicals, and power generation, Nguyen Fittings provides SS 304L Pipe Fittings that meet international standards, ensuring safe and efficient operation in challenging environments.
| Specifications | : | ASTM A182 ASME SA 182 |
| Tube Size | : | 1/16”OD to 2”OD, 2mm OD to 50mm OD |
| Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE etc. |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
Stainless Steel 304L Pipe Fittings are crafted from a low-carbon austenitic stainless steel alloy that includes chromium and nickel. The lower carbon content helps prevent carbide precipitation during welding, which boosts resistance to intergranular corrosion. These fittings boast good tensile and yield strength, high ductility, and reliable corrosion resistance in both oxidizing and mildly reducing environments. Their stability at moderate temperatures and excellent weldability make them perfect for both welded and seamless piping systems.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |

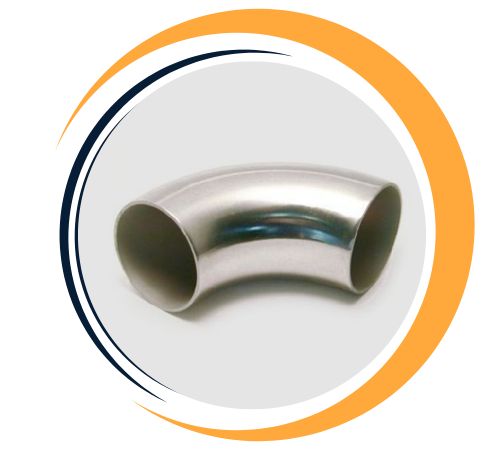

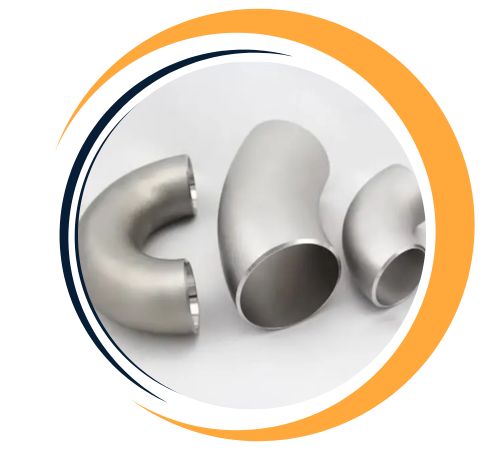

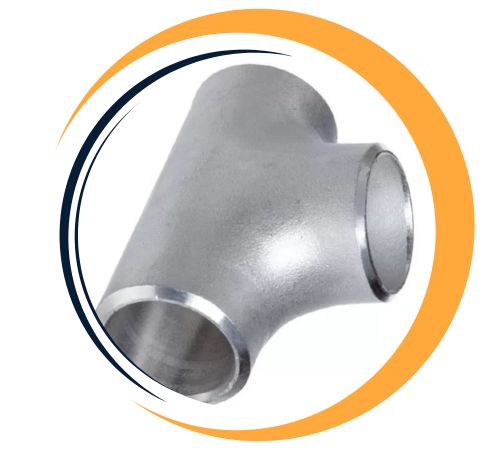

Nguyen Fittings one of the largest suppliers of Stainless Steel 304L Pipe Fittings in Da Nang, Vietnam. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 304L is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 304L Pipe Fittings in the Vietnam.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 304L Pipe Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304L | S30403 | 304S11 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304L |
Stainless steel 304L pipe fittings provide excellent corrosion resistance, especially in sensitive corrosion and oxidizing environments. Their low carbon content reduces carbide precipitation during welding, resulting in better weldability and reduced risk of intergranular corrosion. These fittings are durable, versatile and maintain high strength at even at elevated temperatures. It is easy to make and wash, making it suitable for hygiene-critical applications such as food processing and pharmaceuticals. Due to their excellent durability they perform well in both cryogenic and high temperature environments making them a reliable choice for a variety of industrial and commercial applications.
Yes, custom sizes are available for Stainless Steel 304L Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@nguyenfittings.com.
SS 304L Pipe Fittings are commonly found in chemical processing pipelines, water treatment facilities, food and beverage lines, pharmaceutical systems, HVAC piping, and marine piping networks. They are particularly suited for applications where welded connections are prevalent and corrosion resistance is essential. The combination of durability, versatility, and resistance to intergranular corrosion makes SS 304L Pipe Fittings a top choice for engineers and operators looking for long-lasting reliability, safety, and efficiency in industrial and commercial piping systems.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
