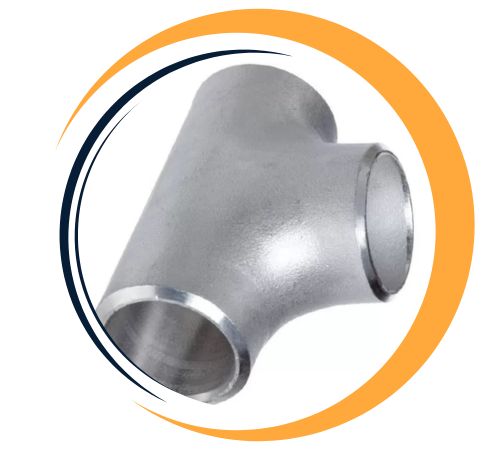

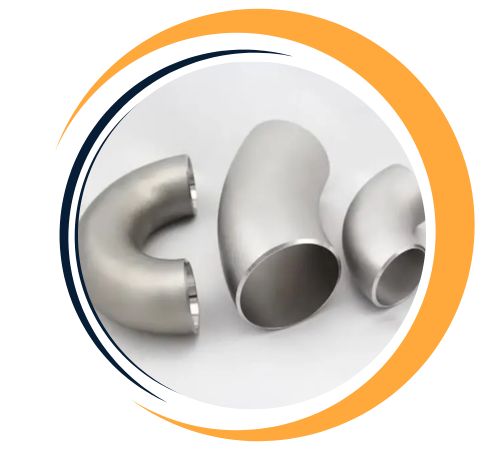

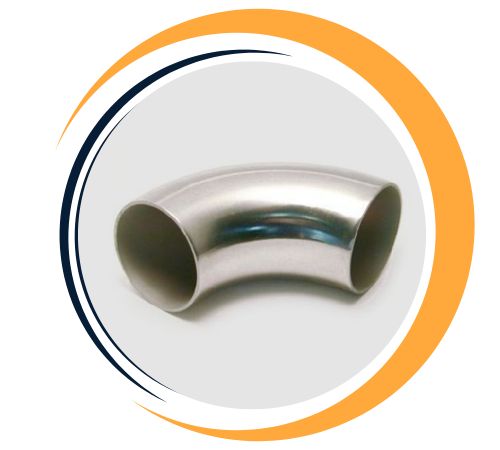

Nguyen Fittings and Plates, Da Nang, Vietnam, produces cost-effective Stainless Steel 202 Pipe Fittings for general-purpose indoor use. Produced to ASME and ASTM standards, these fittings are designed to be reliable and cost-effective without compromising on finishing or structure. Elbows, tees, reducers, and caps are some of the types of fittings available—our SS 202 fittings are produced in accordance with international quality standards and are perfect for commercial construction, HVAC systems, and architectural plumbing systems.
| Specifications | : | ASTM A403 / ASME SA403 |
| Dimensions | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | : | SCH 5S, SCH 10S, SCH 20S, SCH 40S, SCH 80S, SCH 120S, SCH 1605, SCH XXS |
| Type | : | Seamless / Welded / Fabricated |
Stainless Steel 202 has 17–19% chromium, 4–6% nickel, and 7.5–10% manganese. It provides tensile strength of up to 515 MPa, yield strength around 275 MPa, and elongation of around 40%. Though not as corrosion-resistant as SS 304, SS 202 is still ideal for dry and low-corrosion environments. It is non-magnetic in annealed form but, upon cold working, becomes magnetic, and shows excellent formability and weldability.
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
Nguyen Fittings one of the largest suppliers of Stainless Steel 202 Pipe Fittings in Da Nang, Vietnam. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 202 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 202 Pipe Fittings in the Vietnam.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 202 Pipe Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
Stainless steel 202 pipe fittings enhance corrosion resistance, making it suitable for slightly corroded environments. They provide high strength and durability, providing long life even under high stress and temperature conditions. Their lightweight nature makes them easier to handle and install compared to other stainless steel products. The SS 202 fittings are cost-effective, providing performance at an affordable price. They also exhibit excellent weldability and machinability, facilitating fabrication. With their sleek finish, these inserts are ideal for decor and retain their shine over time, requiring minimal maintenance.
| Element | Density, lb/in3 | Modulus of Elasticity, psi | Linear Expansion, 68-212°F, /°F | Thermal Conductivity, Btu/ft hr°F | Heat Capacity, Btu/lb°F | Electrical Resistivity, Ω-inch |
| SS 202 | 0.285 | 29 x 106 | 9.4 x 10-6 | 8.7 | 0.12 | 27.6 x 10-6 |
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(inches) |
Long Radius |
Short Radius |
Long Radius |
Long Radius |
||||
|
(mm) |
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Radius
(inches) |
Center to Center
(inches) |
Back to face
(inches) |
|
|
1/2 |
21.3 |
0.840 |
1 1/2 |
– |
5/8 |
2 |
1 7/8 |
|
|
3/4 |
26.7 |
1.050 |
1 1/8 |
– |
7/16 |
2 1/4 |
1 11/16 |
|
|
1 |
33.4 |
1.315 |
1 1/2 |
1 |
7/8 |
3 |
2 3/16 |
|
|
1 1/4 |
42.2 |
1.660 |
1 7/8 |
1 1/4 |
1 |
3 3/4 |
2 3/4 |
|
|
1 1/2 |
48.3 |
1.900 |
2 1/4 |
1 1/2 |
1 1/8 |
3 |
4 1/2 |
3 1/4 |
|
2 |
60.3 |
2.375 |
3 |
2 |
1 3/8 |
4 |
6 |
4 3/16 |
|
2 1/2 |
73.0 |
2.875 |
3 3/4 |
2 1/2 |
1 3/4 |
5 |
7 1/2 |
5 3/16 |
|
3 |
88.9 |
3.500 |
4 1/2 |
3 |
2 |
6 |
9 |
6 1/4 |
|
3 1/2 |
101.6 |
4.000 |
5 1/4 |
3 1/2 |
2 1/4 |
7 |
10 1/2 |
7 1/4 |
|
4 |
114.3 |
4.500 |
6 |
4 |
2 1/2 |
8 |
12 |
8 1/4 |
|
5 |
141.3 |
5.563 |
7 1/2 |
5 |
3 1/8 |
10 |
15 |
10 5/16 |
|
6 |
168.3 |
6.625 |
9 |
6 |
3 3/4 |
12 |
18 |
12 5/16 |
|
8 |
219.1 |
8.625 |
12 |
8 |
5 |
12 |
24 |
16 5/16 |
|
10 |
273.1 |
10.750 |
15 |
10 |
6 1/4 |
15 |
30 |
20 3/8 |
|
12 |
323.9 |
12.750 |
18 |
12 |
7 1/2 |
18 |
36 |
24 3/8 |
Yes, custom sizes are available for Stainless Steel 202 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@nguyenfittings.com.
202 pipe fittings are suitable for plumbing systems, structural pipe, HVAC, interior water installations, and urban drainage systems. Used widely in kitchen exhaust, architectural hardware, and light commercial structures, they provide the best of economy and durability. Their uniform mechanical properties render them suitable for internal-use systems where cleanroom-level corrosion resistance is not essential.
