Nguyen Fittings and Plates, Da Nang, Vietnam, is a reliable manufacturer and supplier of Alloy Steel WP91 Pipe Fittings, best suited for high-temperature and high-pressure applications. Produced to ASTM A234 WP91 specifications, these fittings are designed from ferritic-martensitic alloy steel, providing superior strength, durability, and heat resistance. Our WP91 pipe fittings come in elbows, tees, reducers, and caps and are applied widely in power generation, refineries, and boiler use. Nguyen’s forging, heat treatment, and dimensional accuracy ensure years of reliability in the world’s toughest industrial environments.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

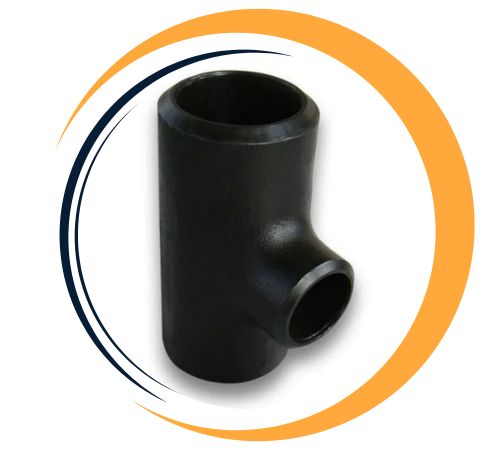

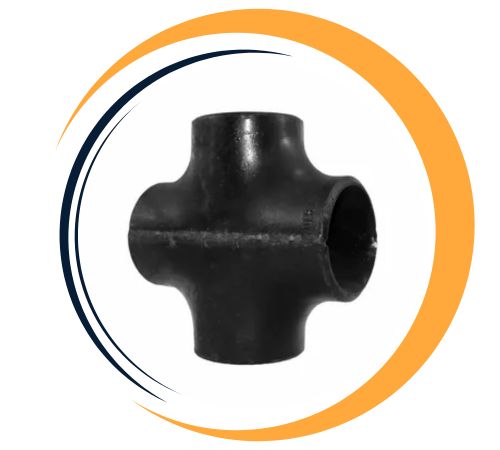

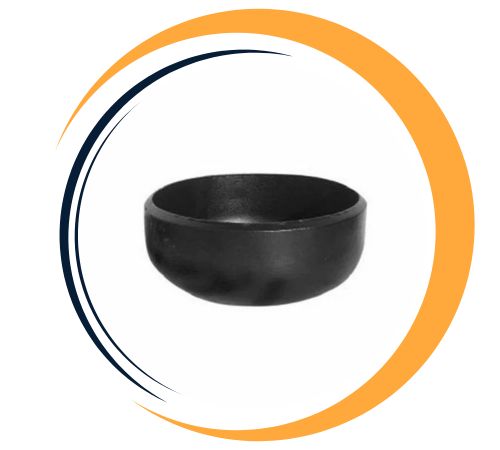

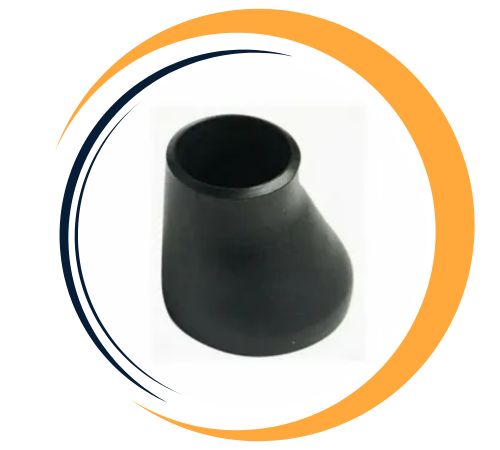

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
WP91 alloy steel comprises 9% chromium, 1% molybdenum, 0.25–0.5% vanadium, and minute traces of niobium and nitrogen. These ingredients impart outstanding tensile strength (620–850 MPa) and yield strength (~415 MPa) with superior creep rupture resistance. It is mechanically stable at high temperatures (up to 650°C). Normalizing and tempering optimize the microstructure, improving toughness, resistance to oxidation, and structural lifespan under thermal cycling conditions.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP91 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP91 | 415-585 | 205 | 20 |
Nguyen Fittings is a leading supplier of Alloy Steel WP91 Pipe Fittings in Da Nang, Vietnam. We offer an extensive range of Alloy Steel WP91 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP91 Pipe Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel WP91 Pipe Fittings offer numerous advantages, including exceptional strength and resistance to high temperatures, making them ideal for power plants, petrochemicals, and other demanding industries. They resist oxidation, creep, and thermal fatigue at elevated temperatures. WP91 fittings also display good weldability, ensuring reliable and durable connections in piping systems. Additionally, they exhibit superior resistance to corrosion and stress corrosion cracking, enhancing their lifespan and performance in harsh environments. Their versatility and excellent mechanical properties make them a preferred choice for critical applications.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP91 Pipe Fittings are available at Nguyen Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@nguyenfittings.com.
WP91 Alloy Steel Pipe Fittings are extensively employed in superheater systems, steam pipes, boiler headers, and thermal power plants. They deliver a vital role in petrochemical process plants, high-pressure heater circuits, and heat exchangers. The fittings excel in temperature-varying, creep-prone environments, providing structural integrity with low-maintenance requirements. Nuclear power, oil & gas, and chemical refineries rely on WP91 due to its strong thermal fatigue resistance and extended service life under tough environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
