Nguyen Fittings and Plates, Da Nang, Vietnam, provides high-quality Alloy Steel WP22 Pipe Fittings, meant for severe thermal and pressure conditions. Fabricated according to ASTM A234 WP22 and ASME B16.9, these fittings such as elbows, tees, and reducers are forged from superior alloy steel and heat-treated to precise tolerances. Characterized by strength, resistance to oxidation, and creep resistance, WP22 fittings are relied upon in heavy-duty applications. Nguyen’s manufacturing provides dimensional tolerances, excellent surface finish, and performance in tough operating conditions, ensuring them a trusted option for critical fluid and gas systems.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

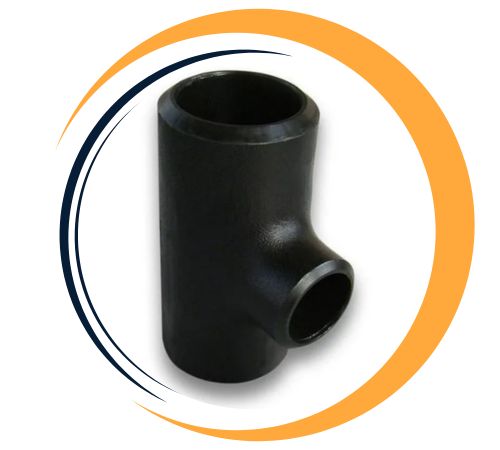

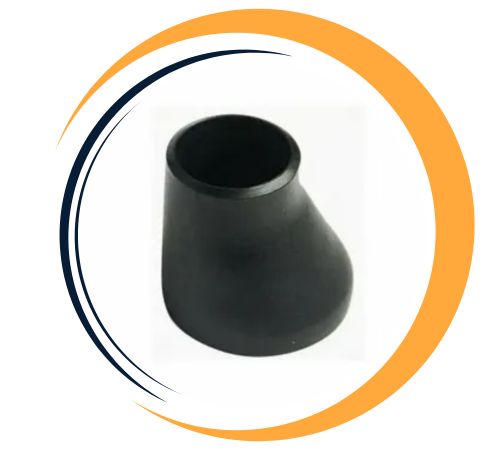

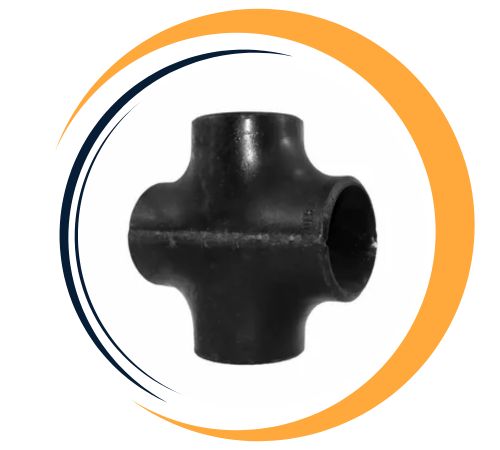

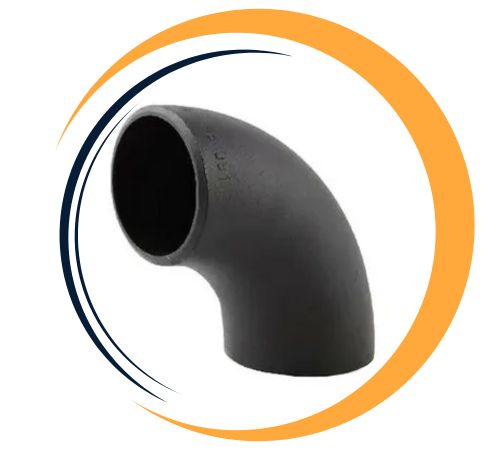

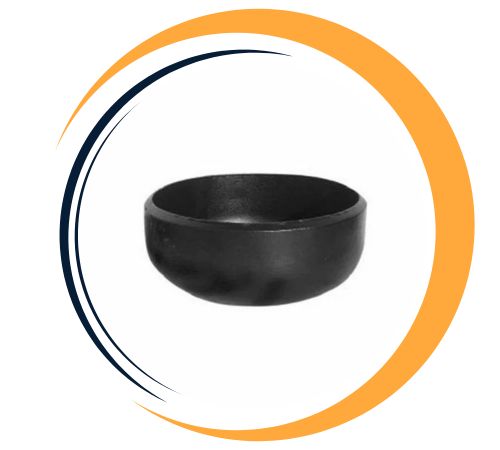

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
WP22 comprises about 9% chromium, 1% molybdenum, 0.2–0.5% vanadium, along with nickel and tungsten in trace amounts. It achieves tensile strength of 620–850 MPa and yield strength near 415 MPa, supported by outstanding creep and oxidation resistance at elevated temperatures (up to 650 °C). Normalizing and tempering refining enhance toughness, fatigue endurance, and thermomechanical stability, ensuring the alloy withstands thermal cycles and high-stress operating envelopes.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP22 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP22 | 415-585 | 205 | 20 |
Nguyen Fittings is a leading supplier of Alloy Steel WP22 Pipe Fittings in Da Nang, Vietnam. We offer an extensive range of Alloy Steel WP22 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP22 Pipe Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel WP22 Pipe Fittings offer exceptional resistance to high-temperature environments, making them ideal for power plants, boilers, and other high-heat applications. These fittings are known for their excellent weldability, ensuring ease of installation and strong, durable joints. With high tensile strength, they provide superior structural integrity under pressure. The material is also highly resistant to corrosion, oxidation, and thermal fatigue, making WP22 fittings reliable in demanding conditions. Their versatility, cost-effectiveness, and long service life make them a preferred choice for various industrial applications.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP22 Pipe Fittings are available at Nguyen Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@nguyenfittings.com.
Alloy steel WP22 pipe fittings are critical for use in superheater lines, steam pipes, boiler headers, furnace systems, and thermal oil circuits. The fittings are greatly appreciated for application in power generation, petrochemical processing, industrial steam systems, and chemical manufacturing facilities where high-temperature creep resistance is highly needed. WP22 fittings are particularly ideal for heat-intensive conditions, retaining structural integrity under fluctuating loads and temperature gradients. Their ability to maintain mechanical strength and thermal stability for long-duration service makes them a perfect match for safety-critical piping systems.
