Nguyen Fittings and Plates, located in Da Nang, Vietnam, is a reputable manufacturer and supplier of **Stainless Steel 904L Buttweld Fittings** that are specifically designed to withstand extreme corrosion in demanding process systems. These fittings are crafted to create robust, leak-proof welded joints, ensuring exceptional dimensional accuracy and long-lasting durability. With a focus on precision forming, advanced machining, and rigorous quality control, Nguyen Fittings guarantees smooth internal surfaces, uniform wall thickness, and dependable flow characteristics. Catering to industries such as chemical processing, petrochemical, marine, offshore, pharmaceutical, pulp and paper, and power generation, Nguyen Fittings provides SS 904L Buttweld Fittings that meet international standards for safe, efficient, and high-performance piping systems.
| Grade | SS 904L | UNS N08904 |
| Standard | ASTM B366 / ASME SB366 |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Size | 1/2″ NB – 48″ NB |

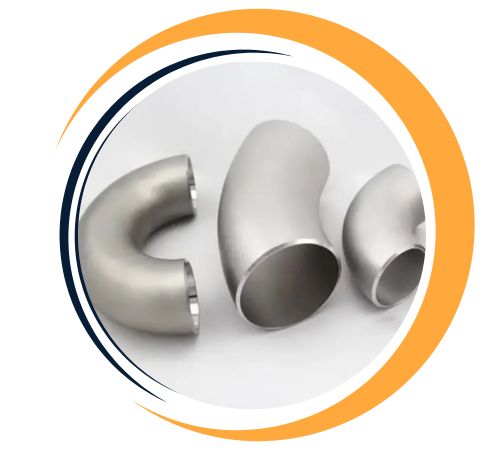

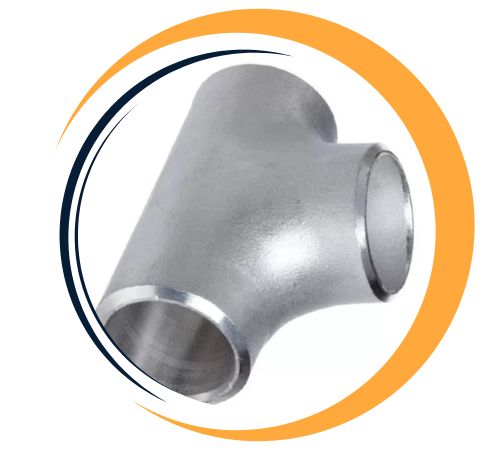

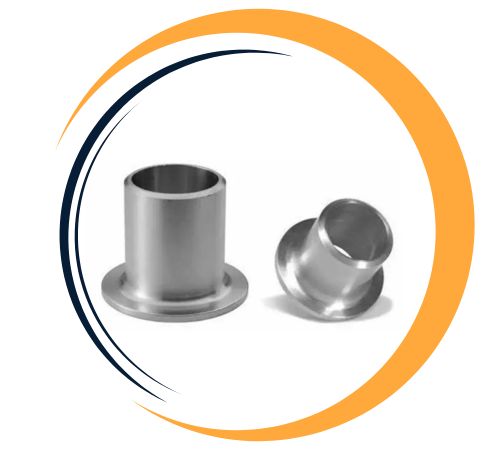

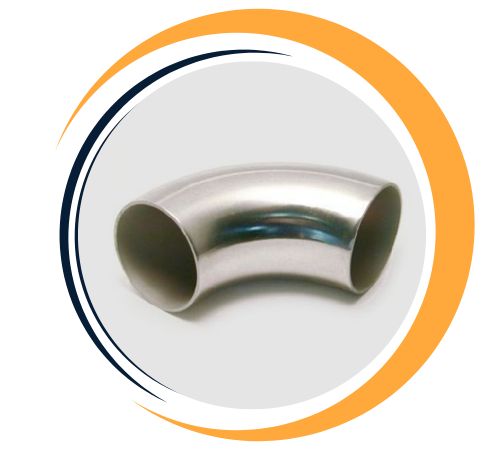

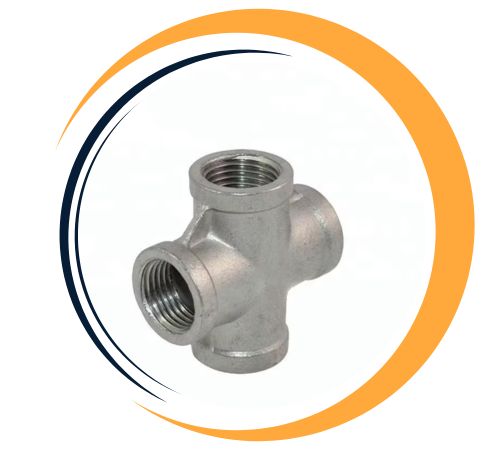

| Form | 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap |
| Schedule | SCH 5 To SCH XXS |
| Type | Seamless / Welded / Fabricated |
Manufactured from a high-alloy, low-carbon austenitic stainless steel, Stainless Steel 904L Buttweld Fittings contain elevated levels of nickel, chromium, molybdenum, and copper. This unique composition offers remarkable resistance to reducing acids like sulfuric and phosphoric acid, along with excellent protection against pitting and crevice corrosion in chloride-rich environments. The low carbon content reduces the risk of intergranular corrosion post-welding, while the alloy maintains impressive tensile strength, ductility, and stability at both ambient and elevated temperatures.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Nguyen Fittings is a leading supplier of Stainless Steel 317 Buttweld Fittings in Da Nang, Vietnam. We offer an extensive range of Stainless Steel 317L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Stainless Steel 904L Buttweld Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 904L Buttweld Fittings provide excellent corrosion resistance, especially in aggressive environments with high concentrations of acids such as sulfuric acid. They are highly resistant to pitting and crevice corrosion, making them ideal for applications in the chemical, petrochemical and marine industries. The high molybdenum and nickel content of the alloy provides high strength and toughness even at elevated temperatures. Furthermore, these materials retain their structural integrity and function under oxidation reduction conditions. Their versatility, strength, and durability make them important application candidates.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel 904L Buttweld Fittings are available at Nguyen Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@nguyenfittings.com.
SS 904L Buttweld Fittings find extensive use in sulfuric acid production, chemical storage and transport systems, seawater desalination units, offshore oil and gas platforms, pharmaceutical manufacturing, heat exchangers, and pollution control equipment. They are the go-to choice for applications that demand outstanding corrosion resistance, structural integrity, and a long service life in harsh, corrosive conditions. Their blend of durability, weldability, and corrosion protection makes SS 904L Buttweld Fittings an essential component in many critical systems.
