Nguyen Fittings and Plates, located in Da Nang, Vietnam, is a reputable manufacturer and supplier of top-notch **Stainless Steel 316H Buttweld Fittings** designed specifically for high-temperature and corrosive environments in industrial piping systems. These fittings are crafted to ensure robust, leak-proof, and smooth-flow connections that enhance the integrity and performance of your system. With a focus on precision forming, controlled machining, and rigorous quality checks, Nguyen Fittings guarantees accurate dimensions, consistent wall thickness, and long-lasting performance. Catering to industries such as petrochemical, chemical processing, power generation, marine, pharmaceutical, and refining, Nguyen Fittings provides SS 316H Buttweld Fittings that comply with global standards, ensuring safety, reliability, and efficiency in critical piping applications.
| Specifications | ASTM A403 / ASME SA403 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 24″, Welded Butt Weld Fittings: 1/2″ – 48″ |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Stainless Steel 316H Buttweld Fittings are constructed from a high-carbon variant of molybdenum-bearing austenitic stainless steel. The increased carbon content offers enhanced tensile and yield strength at elevated temperatures, along with improved creep resistance, all while maintaining the excellent corrosion resistance associated with SS 316. These fittings are resistant to pitting, crevice corrosion, and chloride-induced attacks, providing solid mechanical stability during thermal cycling, pressure changes, and continuous high-temperature operations.
| Grade | 316/316H/316L | |
|---|---|---|
| min | max | |
| C | – | 0.035 |
| Mn | – | 2.0 |
| Si | – | 0.75 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 16.0 | 18.0 |
| Mo | 2.0 | 3.0 |
| Ni | 10.0 | 14.0 |
| N | – | – |
Nguyen Fittings is a leading supplier of Stainless Steel 304L Buttweld Fittings in Da Nang, Vietnam. We offer an extensive range of Stainless Steel 304L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 304L Buttweld Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 316H Buttweld Fittings provide exceptional corrosion resistance, especially in high-temperature environments, making them ideal for chemical, petrochemical, and marine applications With high strength and durability these fittings maintain structural integrity in high-pressure and high-pressure conditions. The advanced carbon content of the 316H grade increases its strength at elevated temperatures, making it suitable for heat exchanger and boiler systems. These materials also exhibit excellent weldability and resist pitting, crevice corrosion, and chloride stress corrosion, providing durability and reliable performance in harsh environments.

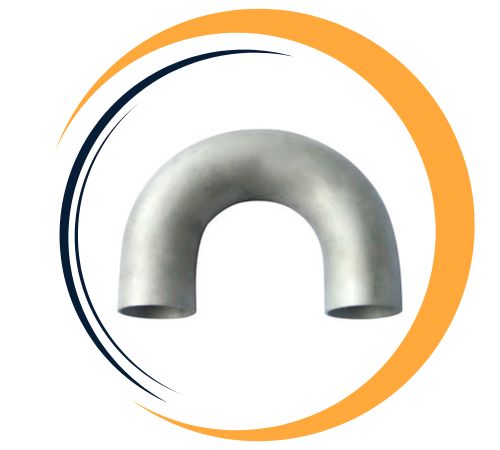

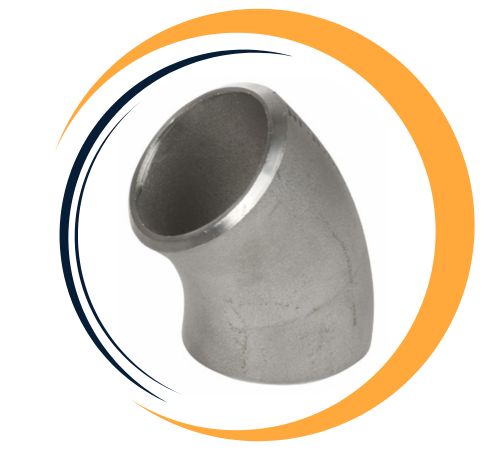

| Nominal Pipe Size (inches) | Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Center to Face (inches) | Center to Center (inches) | Back to face (inches) | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel 304L Buttweld Fittings are available at Nguyen Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@nguyenfittings.com.
SS 316H Buttweld Fittings find extensive use in chemical plants, oil and gas refineries, boilers, superheaters, heat exchangers, and high-pressure steam lines. They are the go-to choice for applications that demand secure welded joints, reduced turbulence, and minimized pressure drops. With their blend of high-temperature strength, corrosion resistance, and smooth flow characteristics, SS 316H Buttweld Fittings are a reliable option for engineers and operators looking for long-lasting, safe, and efficient performance in challenging industrial piping systems.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
