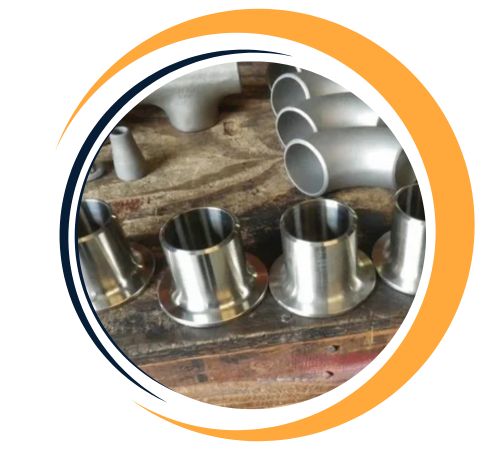

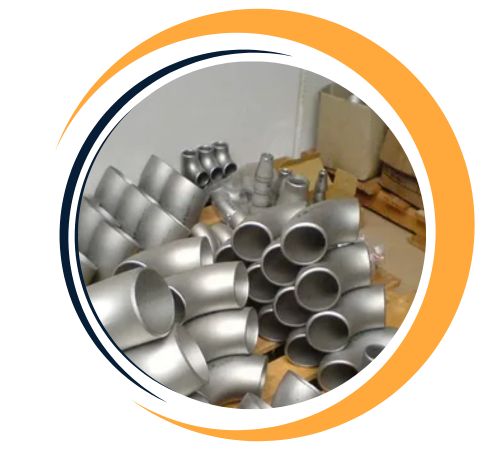

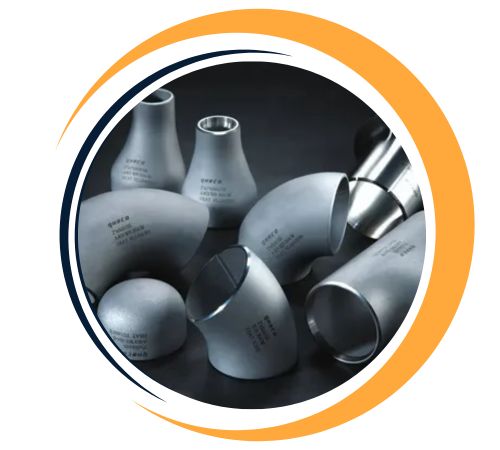

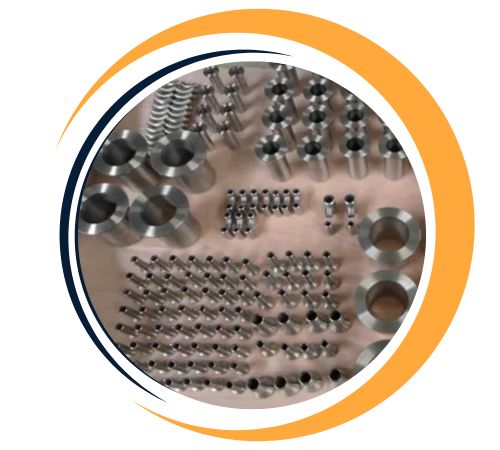

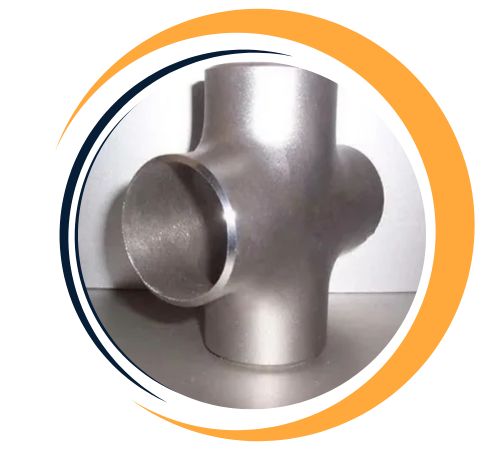

Nguyen Fittings and Plates, located in Da Nang, Vietnam, stands out as a top manufacturer and supplier of high-performance **Inconel 625 Pipe Fittings** designed for the toughest piping systems. Renowned for their remarkable strength, durability, and resistance to corrosion, these fittings are perfect for critical applications in extreme conditions. Crafted through advanced manufacturing techniques, precision machining, and thorough testing, Nguyen Fittings guarantees dimensional accuracy, leak-proof assembly, and a long lifespan. Catering to sectors like oil and gas, chemical processing, marine engineering, offshore platforms, aerospace, and power generation, Nguyen Fittings delivers Inconel 625 Pipe Fittings that meet global standards, ensuring safety, efficiency, and reliability in complex operations.
Standard :ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Inconel 625 Pipe Fittings are crafted from a nickel-chromium-molybdenum alloy, with approximately 58% nickel, 20-23% chromium, and 8-10% molybdenum. This composition provides exceptional resistance to oxidation, corrosion, and high-temperature environments. The fittings offer excellent mechanical properties, including a tensile strength of about 930 MPa, yield strength of 414 MPa, and elongation of 30%. They maintain stability in temperatures ranging from cryogenic levels to 980°C. This makes them ideal for demanding industries like aerospace, marine, and chemical processing, ensuring reliability under extreme stress and chemical exposure.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 705 | 42.5 % |
Inconel 625 Pipe Fittings are constructed from a nickel-chromium-molybdenum-niobium alloy that provides exceptional mechanical and chemical performance. They boast high tensile and yield strength without the need for heat treatment, along with excellent resistance to fatigue, creep, and rupture, and outstanding stability across a wide range of temperatures. The alloy’s ability to resist oxidation, pitting, crevice corrosion, chloride-ion stress-corrosion cracking, and both acidic and alkaline environments makes these fittings ideal for challenging service conditions. Their ductility and toughness ensure they perform reliably in high-pressure and high-temperature piping systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Pressure-Temperature ratings for Inconel 625 Pipe Fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 – 1 inch. | 1 1/4 – 2 inch. | 2 1/2 – 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Inconel 625 Pipe Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Inconel 625 Pipe Fittings offer superior performance in challenging environments. Their outstanding corrosion and oxidation resistance make them ideal for marine, chemical, and aerospace industries. They withstand extreme temperatures, from cryogenic to 980°C, maintaining mechanical integrity. High tensile and yield strength eliminate the need for additional heat treatments. These fittings resist pitting, crevice corrosion, and stress-corrosion cracking, ensuring durability in acidic and saltwater conditions. Additionally, their excellent weldability and fabricability simplify installation, making them a reliable and cost-effective choice for high-performance applications across diverse industries.
Yes, custom sizes for Inconel 625 Pipe Fittings are available at Nguyen Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@nguyenfittings.com.
Inconel 625 Pipe Fittings find extensive use in industries where strong and corrosion-resistant components are crucial. Typical applications include heat exchangers, condensers, desalination plants, offshore oil platforms, marine exhaust systems, pollution control systems, and aerospace propulsion assemblies. They are engineered to withstand aggressive fluids, exposure to seawater, and extreme thermal and mechanical stress while maintaining their structural integrity.
