Nguyen Fittings and Plates is a prominent distributor and manufacturer of Duplex Steel S32205 Pipe Fittings in Da Nang, Vietnam, renowned for superior strength and high corrosion resistance. Made in compliance with ASTM A815 and ASME B16.9 specifications, the fittings find optimal use in critical piping applications in marine, chemical, and oil & gas industry. Duplex S32205 (which is also referred to as UNS S32205 or 2205) provides an equal balance of microstructure of austenite and ferrite, providing outstanding mechanical properties and corrosion resistance. Nguyen provides seamless, welded, and fabricated elbows, tees, reducers, and caps with accurate tolerances and better surface finish.
| Specifications Standard | ASTM A815 /ASME SA815 |
|---|---|
| Duplex 2205 Pipe Fittings Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
| Connection | Welding |
| Type | DN15 to DN1200 |
| Origin & Mills | Indian, European, Korean, Japanese, Ukraine, USA, Russian |
| Radius of bending | R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D |
| Duplex 2205 Pipe Fittings Manufacturing process | Forge, Press, Cast, Push etc. |
| Thickness | SCH10, SCH40, XS, SCH30, SCH 160, SCH 80, SCH 140, SCH60, SCH20, STD , SCH 120, SCH 100, XXS |
| Pressure Ratings | 2000#, 150#, 6000#, 3000#, 9000# |
| End Connections: | socket weld and Threaded |

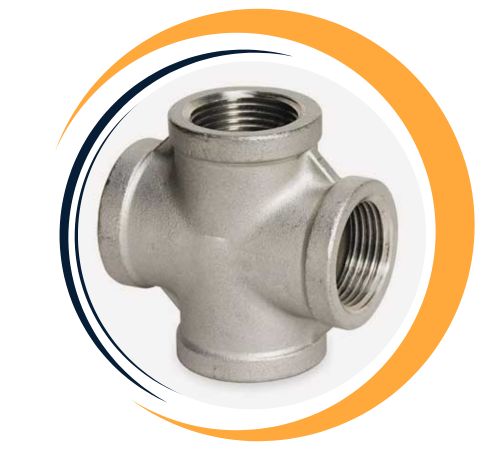

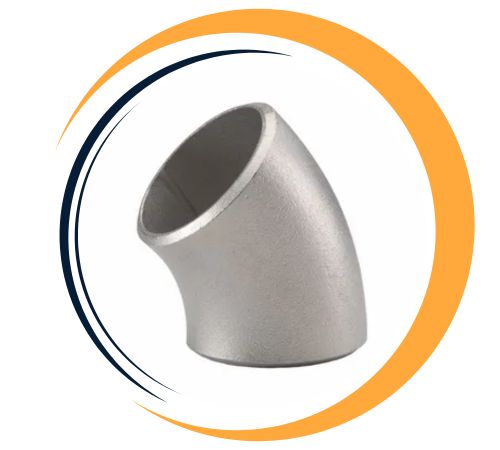

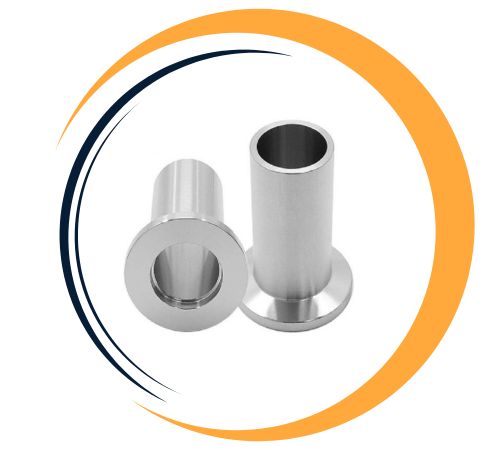

| Duplex 2205 Pipe Fittings manufacturer | 90º Tee, Elbows, Pipe Cap, Stub End, 45º Elbows, Crosses, Pipe Bend, Reducers |
| Dimensions | ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10 |
| Elbows | Angle : 2.0D, 1.5D, 5D, 3D, 1.0D, 6D, 4D, 2.5D, 7D-40D . Standard: JISB2312, MSS SP-75, 22.5 deg, JISB2313, 30deg, ASME B16.9, 180 deg, 45 deg, JISB2311 BS, DIN2605, 90 deg, GB ISO |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report, etc |
Duplex Steel S32205 consists of around 22% chromium, 5–6% nickel, 3% molybdenum, and ferritic-austenitic microstructure. This alloy yields tensile strength of 620–850 MPa and yield strength of ≥450 MPa, which is close to double compared to conventional austenitic stainless steels. It has very good resistance to pitting, stress-corrosion cracking, and crevice corrosion, particularly in chloride-enriched environments. The alloy has heat resisting properties and good weldability with low thermal expansion and high fatigue resistance, and hence is suitable for structural and corrosive service conditions.
| Grade | C | Mn | Si | N | P | Cr | Fe | Ni | S | Mo |
| S32205 Fittings | 0.030 maximum | 2.00 maximum | 1.00 maximum | 0.8 to 0.20 | 0.030 maximum | 21.0 to 23.0 | 63.54 minimum | 4.50 to 6.50 | 0.020 maximum | 2.50 to 3.50 |
| Grades | Density (lb/in 3) | Melting Point (°F) | Density (g/centimeter 3) | Melting Point (°C) |
| S32205 Fittings | 0.285 | 2588 to 2669 | 7.805 | 1420 to 1465 |
Nguyen Fittings is a leading supplier of Duplex Steel S32205 Pipe Fittings in Da Nang, Vietnam. We offer an extensive range of Duplex Steel S32205 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Standard | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Super Duplex 2205 | 1.4462 | S32205 | – | – | – | – | – |
Duplex Steel S32205 Pipe Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Duplex Steel S32205 Pipe Fittings offer numerous advantages, including exceptional corrosion resistance, especially in chloride-rich environments. Their high strength-to-weight ratio makes them ideal for demanding applications while reducing structural load. The alloy’s superior resistance to stress corrosion cracking (SCC) and pitting enhances durability in harsh conditions. Duplex Steel S32205 fittings also exhibit excellent weldability, ensuring reliable connections. With good formability and high toughness, they are well-suited for chemical, marine, and oil and gas industries, providing long-lasting performance and reducing maintenance needs.
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | 180 DEG RETURN BENDS | REDUCERS | ELBOWS AND TEES | 180 DEG RETURN BENDS | CAPS |
|---|---|---|---|---|---|---|---|
| NPS | ID at End (1), (3), (4) | OD at Bevel (1), (2) | Centre-to- Centre O | Overall Length H | Centre -to- End Dimension A, B, C, M | Alignment of Ends U | Overall Length E |
| ½ to 2½ | 0.003 | 0.006 -0.003 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 3 to 3 ½ | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 4 | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 5 to 8 | 0.006 | 0.009 -0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.025 |
| 10 to 18 | 0.012 | 0.016 -0.012 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 20 to 24 | 0.019 | 0.025 -0.019 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 26 to 30 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.012 | … | 0.038 |
| 32 to 48 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.019 | … |
Yes, custom sizes for Duplex Steel S32205 Pipe Fittings are available at Nguyen Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@nguyenfittings.com.
Duplex S32205 fittings for pipes are well suited for offshore oil platforms, marine applications, desalination, and chemical storage tanks. They find wide applications in heat exchangers, pressure vessels, pulp and paper equipment, and flue gas scrubbers. These fittings excel in chloride-containing environments and, therefore, are one of the preferred options for seawater systems, fire-fighting pipelines, and coastal facilities. Their greater mechanical strength enables thinner wall sections and lower weight without loss of durability, making them both economic and dependable for long-term, high-pressure industrial application.
