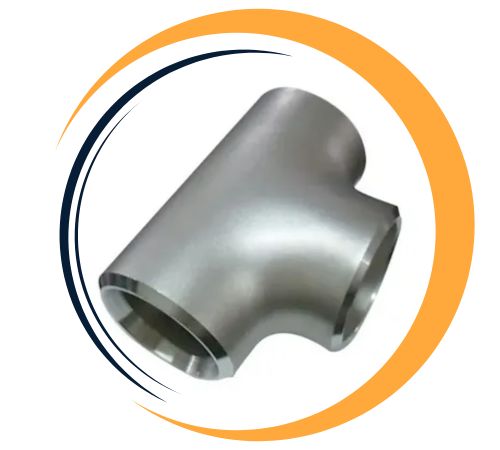

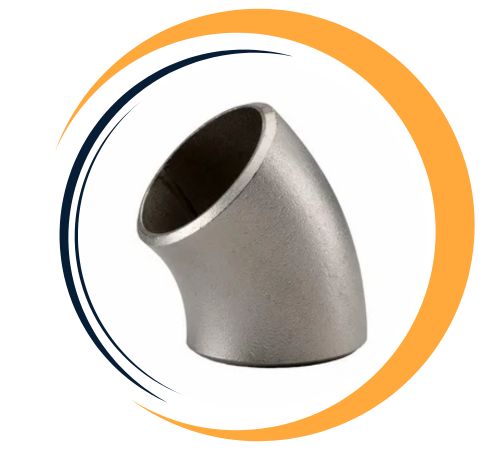

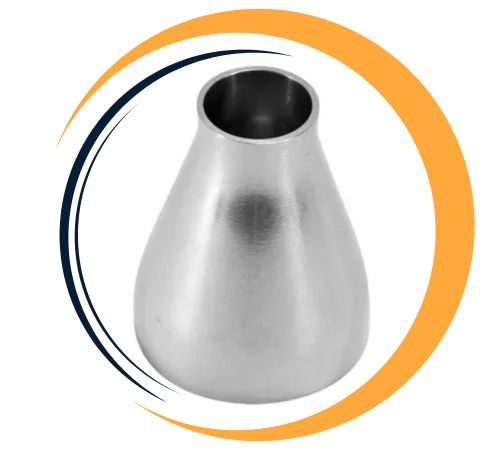

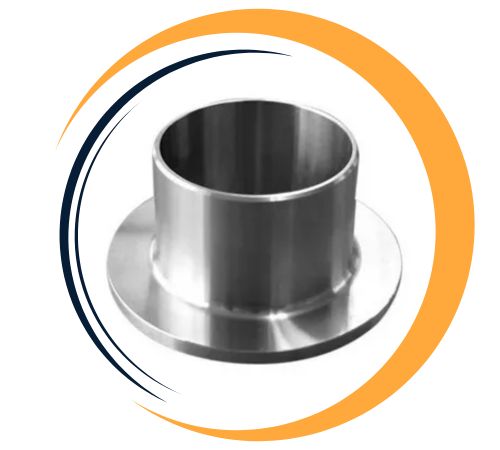

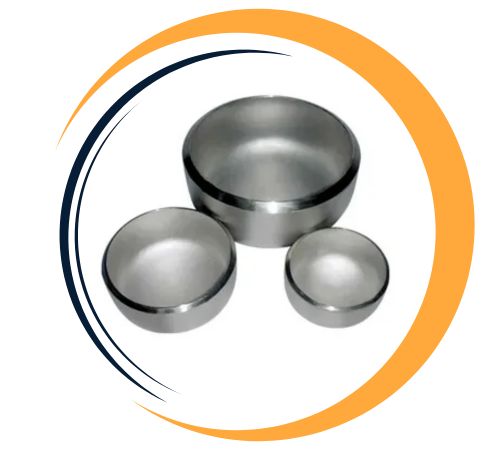

Nickel Alloy 200 Buttweld Fittings of high quality are produced by Nguyen Fittings and Plates for exceptional corrosion resistance and purity. These are fabricated in accordance with ASTM B366 and ASME B16.9 standards using commercially pure nickel to provide excellent chemical stability and formability. Coming in elbows, tees, reducers, and others, they are best suited for highly alkaline and reducing conditions. Nguyen’s stringent forging and finishing operations provide tight tolerances as well as a smooth surface finish. Nickel 200 fittings find extensive application in electronics, food processing, and chemical handling applications that require non-contaminating material.
Standard : ASME / ANSI B16.9, ASME / ANSI B16.11, ASME / ANSI B16.28, ASME B16.5, MSS SP-43, GB12459, GB/T13401, GB/T14383, SH3406, SH3408, SH3409 etc.
Designation : ASTM / ASME B 366 / SB 366
Schedule : Sch 5 TO Sch XXS.
Size : Seamless 1/2″ – 10″ , Welded 1/2″ – 48″
Wall Thickness : from 2 to 40 mm.
Grades : Nickel Alloy 200 Buttweld Fittings(UNS No. N02200) Butt weld Fittings, 2.4060, 2.4066
Type : Seamless / Welded
Nickel Alloy 200 consists of 99% minimum nickel and minor quantities of iron, copper, manganese, and silicon. It has a tensile strength between 380–520 MPa and a yield strength between 105–210 MPa. The alloy is highly ductile, thermally and electrically conductive, and possesses superior corrosion resistance—particularly in caustic as well as alkaline conditions. It is non-magnetic in the annealed state and can be easily shaped and welded. Nickel 200 fittings possess excellent resistance to stress-corrosion cracking and can be both cold worked and hot worked.
| Nickel Alloy 200 | Ni | Fe | C | Mn | Si | Cu | Mg | Ti | S |
| 99.0 min | 0.4 max | 0.15 max | 0.35 max | 0.1 max | 0.25 max | – | – | 0.01 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67,000 , MPa – 462 | Psi – 21,500 , MPa – 148 | 45 % |
Nguyen Fittings is a leading supplier of Nickel Alloy 200 Buttweld Fittings in Da Nang, Vietnam. We offer an extensive range of Nickel Alloy 201 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | НП-2 |
Nickel Alloy 200 Buttweld Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Nickel Alloy 200 buttweld fittings offer excellent corrosion resistance, especially in alkaline and acidic environments, making them ideal for chemical processing, food, and pharmaceutical industries. They possess high thermal and electrical conductivity, ensuring reliability in heat exchange systems. The alloy’s excellent weldability and formability enable ease of fabrication and long-term durability in high-temperature and aggressive conditions. Nickel Alloy 200 fittings also strengthen and resist embrittlement, ensuring consistent performance over time. Additionally, they are resistant to stress corrosion cracking, enhancing their suitability for harsh applications.
Yes, custom sizes for Nickel Alloy 200 Buttweld Fittings are available at Nguyen Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@nguyenfittings.com.

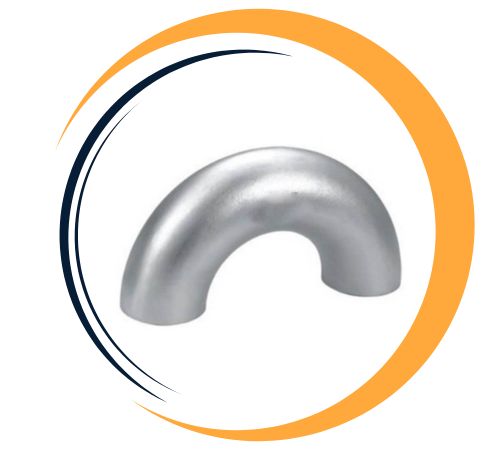

| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Chemical processing, electroplating systems, food and beverage manufacturing, battery production, and electronic component production utilize Nickel 200 buttweld fittings. The fittings are perfect for dealing with caustic alkalis, salt solutions, and highly pure fluids where corrosion resistance and material stability are essential. They also excel in sea environments, man-made fiber production, and drug systems. Their oxidizing and reducing agent resistance provides durability and longevity in corrosive service operations and makes them an industry favorite for consistent and unadulterated performance.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
