Hastelloy C22 Forged Fittings Manufacturer and Supplier in Da Nang, Vietnam

Nguyen Fittings and Plates is a reliable supplier of Hastelloy C22 Forged Fittings, made for tough and highly corrosive applications. These forged socket weld and threaded fittings are produced according to ASTM B564 and ASME B16.11 standards, providing excellent resistance to a range of chemicals, including oxidizing and reducing agents. Hastelloy C22 stands out against chlorides, wet chlorine gas, acids, and seawater. Nguyen’s fittings are precision-forged, heat-treated, and tested for durability, ensuring dependable performance in industries like chemical processing, pollution control, and marine settings.

Hastelloy® Alloy C22 Forged Fittings Vietnam, Alloy C22 High Pressure Forged Fittings Vietnam, UNS N06022 Forged Fittings Da Nang, Hastelloy C22 Socket weld Fittings Hanoi, 2.4602 Forged Fittings Hue, C22 Hastelloy Forged Fittings Sapa, Alloy C22 Threaded Fittings Ho Chi Minh, Hastelloy Alloy C22 Socket weld Fittings Vietnam.

Hastelloy C22 Forged Fittings Specification

C22 Forged Fittings Specifications	ASTM B564/ ASME SB564
Alloy C22 Forged Fittings size	1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Hastelloy C22 Forged Fittings Dimensions	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Hastelloy C22 Forged Fittings Types	Socketweld Fittings, Screwed-Threaded Fittings
ASTM B564 C22 Hastelloy Forged Fittings Pressure Rating	Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs
Hastelloy C22 Forged Fittings Thread	NPT, BSPT, BSPP
C22 Hastelloy Forged Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Nickel Alloy C22 Forged Fittings Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plug

Hastelloy C22 is made of 56% nickel, 20–22.5% chromium, 12.5–14.5% molybdenum, 2.5–3.5% tungsten, and low carbon. It features a tensile strength of 690 MPa and a yield strength of 283 MPa, with high ductility and excellent resistance to pitting, crevice corrosion, and intergranular attack. The alloy remains stable in oxidizing and reducing environments and resists acid chlorides and contaminated chemical streams. This quality makes it highly reliable in extreme conditions.

Hastelloy C22 Forged Fittings Chemical Composition

Grade	C	Mo	Mn	Si	Fe	P	S	Co	Cr	W	V	Ni
C22	0.010	12.5 – 14.5	0.50	0.08	2.00 – 6.00	0.02	0.02	2.5	20 – 22.5	2.5 – 3.5	0.35	Bal

Hastelloy C22 Forged Fittings Mechanical Properties

Grade	Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 45000 , MPa – 310	Psi – 1,00,000 , MPa – 690	45 %

Largest Stockholder of Hastelloy® Alloy C22 Forged Fittings in Vietnam, Ready Stock of NiCr21Mo14W Hastelloy Forged Elbow Vietnam, C22 Hastelloy Forged Cross Trader Da Nang, Competitive Price of Hastelloy C22 Forged Tees Hanoi, Alloy C22 Coupling Hue, ASTM B564 C22 Socket weld Fittings Manufacturers in Sapa, UNS N06022 Forged Fittings Ho Chi Minh, Hastelloy C22 Threaded Fittings Manufacturer in Da Nang, Vietnam.

Hastelloy C22 Forged Fittings Equivalent

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
Hastelloy C22	N06022	2.4602	–	NiCr21Mo14W	NW 6022	–	–

Hastelloy C22 Forged Fittings Standards

Standard Code	Standard Name
ANSI ASME SB-564	Forged fittings
ANSI ASME B16.11	Socket-welding and Threaded forged fittings
MSS SP-79	Socket-welding reducing Inserts
MSS SP-83	Class 3000 steel socket-welding and threaded unions
MSS SP-95	Swaged nipples and round plugs
MSS SP-97	SW,TH and BW ends for integrally reinforced forged branch outlet

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Hastelloy C22 Forged Fittings from Nguyen Fittings?

Hastelloy C22 Forged Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Hastelloy® Alloy C22 Forged Fittings Vietnam, Alloy C22 High Pressure Forged Fittings Vietnam, UNS N06022 Forged Fittings Da Nang, Hastelloy C22 Socket weld Fittings Hanoi, 2.4602 Forged Fittings Hue, C22 Hastelloy Forged Fittings Sapa, Alloy C22 Threaded Fittings Ho Chi Minh, Hastelloy Alloy C22 Socket weld Fittings Vietnam.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Hastelloy C22 forged fittings offer several advantages, making them ideal for demanding applications. Their superior corrosion resistance protects against pitting, crevice corrosion, and stress corrosion cracking, even in aggressive environments like chlorine and acids. The alloy’s excellent weldability and formability ensure ease of fabrication, while its high strength and durability provide long-term reliability. Additionally, Hastelloy C22 maintains exceptional performance at elevated temperatures, making it suitable for a wide range of industrial applications. These properties make it a top choice for industries requiring highly resistant and durable fittings.

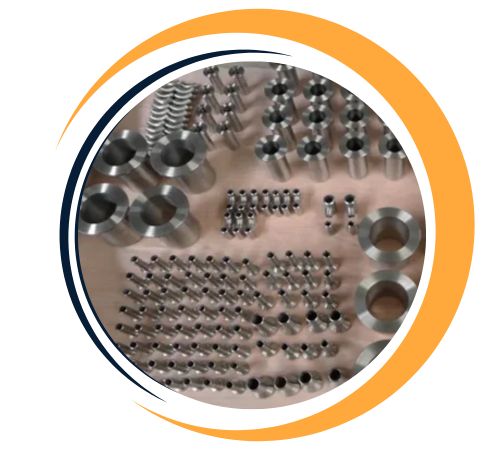

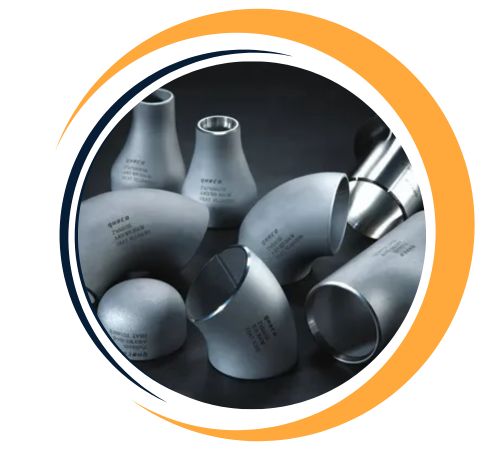

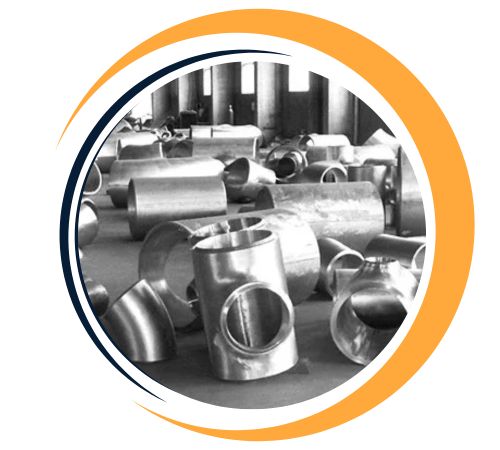

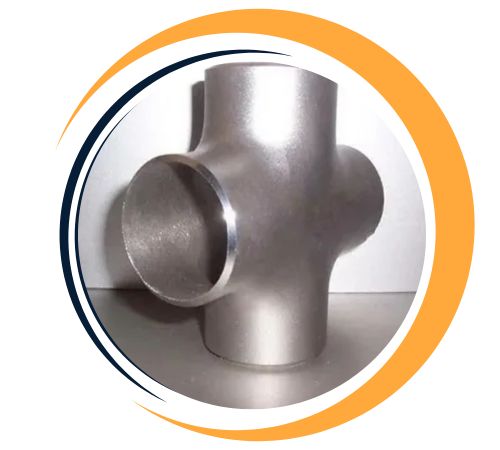

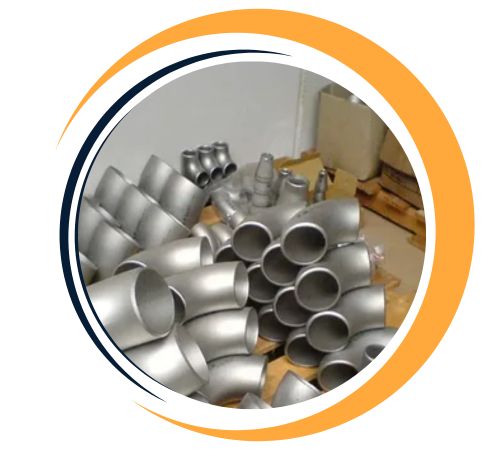

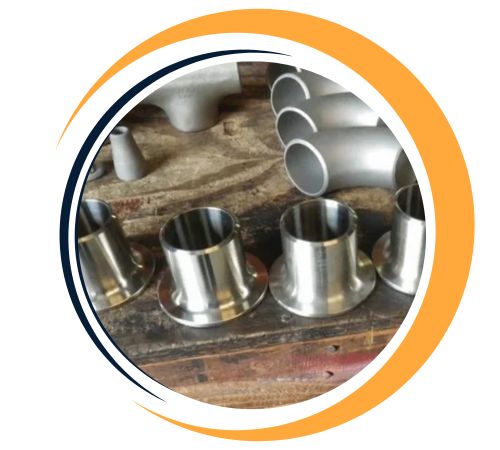

Types of Hastelloy C22 Forged Fittings

Are Custom Sizes Available for Hastelloy C22 Forged Fittings?

Yes, custom sizes for Hastelloy C22 Forged Fittings are available at Nguyen Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@nguyenfittings.com.

Largest Stockholder of Hastelloy® Alloy C22 Forged Fittings in Vietnam, Ready Stock of NiCr21Mo14W Hastelloy Forged Elbow Vietnam, C22 Hastelloy Forged Cross Trader Da Nang, Competitive Price of Hastelloy C22 Forged Tees Hanoi, Alloy C22 Coupling Hue, ASTM B564 C22 Socket weld Fittings Manufacturers in Sapa, UNS N06022 Forged Fittings Ho Chi Minh, Hastelloy C22 Threaded Fittings Manufacturer in Da Nang, Vietnam.

Application Industry of Hastelloy C22 Forged Fittings

Hastelloy C22 forged fittings are found in chemical reactors, acid production plants, marine exhausts, wastewater treatment systems, and flue gas scrubbers. Their strong resistance to oxidizers makes them great for fertilizer manufacturing, pharmaceutical synthesis, and chlorine dioxide systems. The alloy’s ability to withstand many chemicals allows its use in nuclear processing, industrial bleaching, and desalination units. In demanding industrial settings, Hastelloy C22 provides structural integrity, safety, and durability despite constant exposure to aggressive materials.
