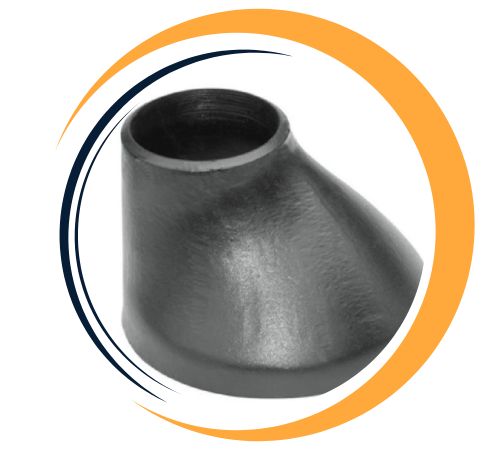

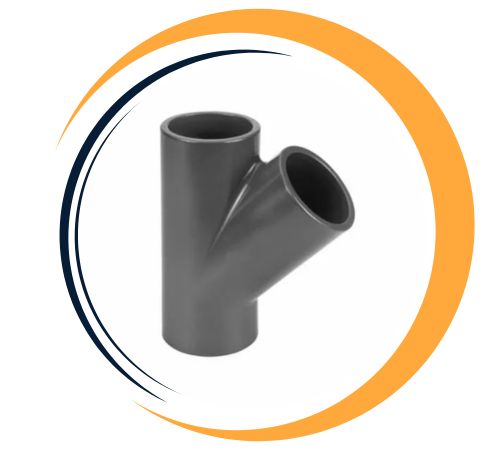

Nguyen Fittings and Plates is a trusted source for Alloy Steel WP22 Buttweld Fittings, produced to ASTM A234 WP22 and ASME B16.9 specifications. Suitable for high-temperature applications, WP22 fittings are constructed of Cr-Mo alloy steel that provides excellent strength, abrasion resistance, and heat resistance. Seamless and welded WP22 fittings are supplied with elbows, tees, reducers, and caps that find application in power plants, boilers, and refineries. With the help of latest production methods and rigorous quality inspection, Nguyen supplies WP22 fittings that satisfy stringent mechanical requirements and provide long-term reliability in pressurized and thermal-cycling applications.
| Specifications | : | ASTM A234 / ASME SA234 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | : | Seamless / Welded / Fabricated |
Alloy Steel WP22 usually has 2.25% chromium and 1% molybdenum, which increase oxidation resistance and high-temperature strength. The alloy has tensile strength of 585–760 MPa and yield strength of approximately 310 MPa, and excellent hardness and creep resistance. WP22 fittings are normalized and tempered to enhance microstructure and reliability at high service conditions. Their stable mechanical properties and superior weldability enable them to be used in the case of severe thermal stress and aggressive media.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP22 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP22 | 415-585 | ≥205 | ≥20 |
Nguyen Fittings one of the largest suppliers of Alloy Steel WP22 Buttweld Fittings in Da Nang, Vietnam. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Alloy Steel WP22 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Alloy Steel WP22 Buttweld Fittings in the Vietnam.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP22 Buttweld Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

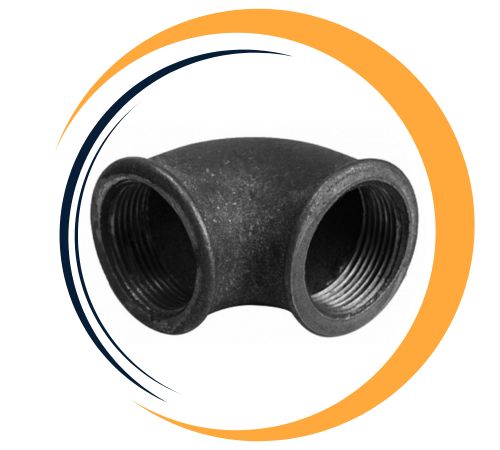

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Alloy Steel WP22 Buttweld Fittings offer numerous advantages, making them ideal for high-temperature and high-pressure applications. Their composition, with chromium and molybdenum, provides superior resistance to oxidation, thermal fatigue, and corrosion. These Buttweld Fittings exhibit excellent weldability, strength, and durability, ensuring long-term performance in demanding industries such as power generation, petrochemical, and oil & gas. WP22 fittings maintain their structural integrity even in extreme environments, reducing the risk of failure. They also offer cost-effective solutions by requiring minimal maintenance and providing a longer service life, making them a reliable choice for critical systems.

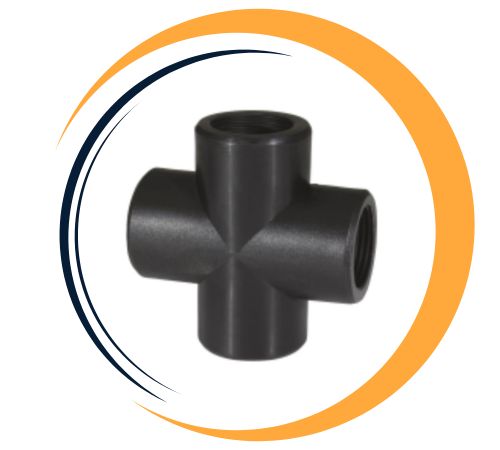

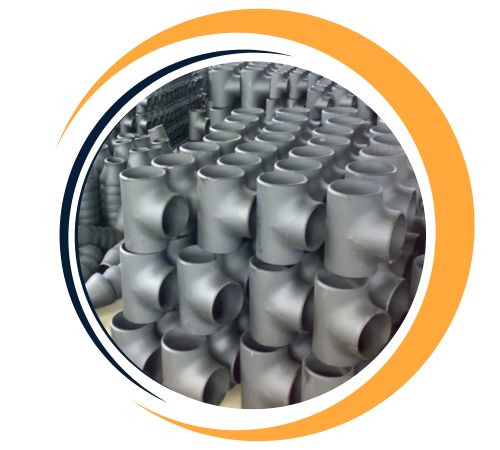

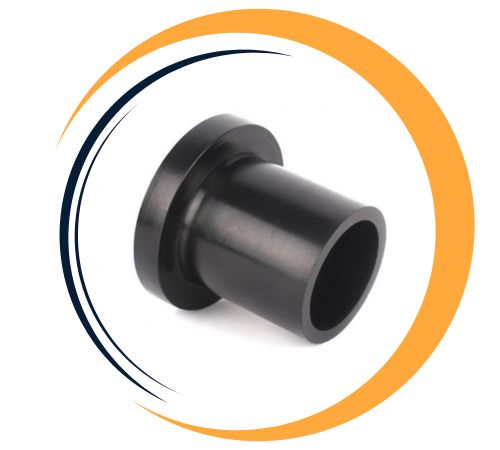

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | ASME B16.9 Pipe End Cap | ASME B16.9 Straight Tee | ASME B16.9 Straight Cross | ASME B16.9 Long And Short Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inch./ Inches) | (millimeter/ MM) | (Inches) | Length (Inches) | Center to End (Inches) | Center to End (Inches) | Lap Diameter (Inches) | Long Length (Inches) | Short Length (Inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes are available for Alloy Steel WP22 Buttweld Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@nguyenfittings.com.
WP22 buttweld fittings are utilized in thermal plants, superheaters, boilers, refineries, and chemical processing plants. Due to their thermal fatigue resistance, they are most suitable for hot oil transportation and steam transport systems, reheat lines, and heat exchangers. In pressure vessels and power piping systems, these fittings are also very vital where stability at high temperatures is of extreme importance. WP22 fittings provide long-term performance even under conditions of fluctuating temperatures, pressures, and corrosive environments, guaranteeing the safety of operation and lower maintenance expenses in demanding applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
