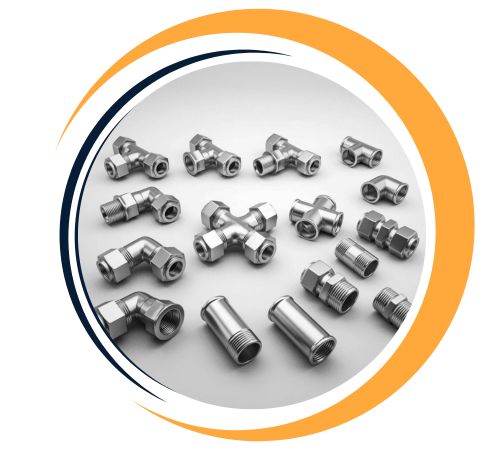

Nguyen Fittings and Plates, Da Nang, Vietnam, is a prominent manufacturer of Alloy Steel F22 Forged Fittings to support heavy pressure, high-temperature applications. These fittings are manufactured according to ASTM A182 F22 standards, using low alloy steel possessing impressive creep resistance and thermal stability. Our forged fittings consist of socket welds, threaded tees, elbows, and couplings for power plants, refineries, and petrochemical facilities. Through state-of-the-art forging methods and strict quality control, Nguyen provides accuracy and reliable performance with every fitting.
| Specification : | ASTM A182 F22 Forged Fittings |
|---|---|
| Size | Threaded Fittings = ½” – 4” |
| Pressure Rating | Threaded Fittings = Class 2000, Class 3000, Class 6000 |
| Type Of Pipe systems | 45 Deg Elbow, Equal tee, Full Coupling, Reducing Tee, 90 Deg Elbow, Half Coupling, Street Elbow, Bull Plug, Boss, Union (Male/Female), Lateral Outlet, 45 Lateral Tee, Equal Cross, Pipe Cap, Branch Outlets, Swage Nipple. |
| Thread Connections | ASME B16.11 (Socket Welding and Threaded) Fittings, MSS-SP-83 (Class Unions) Fittings, ASME B16.3 (Malleable Iron Fittings) Fittings, ASME B16.4 ( Gray Iron Fittings) Fittings, ASME B16.39 (Malleable Iron Unions) Fittings, ASME B16.34 (Valves — Flanged) Fittings, ASME B16.39 (Malleable Iron Pipe Unions, 150#, 250#, Or 300#) Fittings. |
| Standards | ASME B16.11 (American Standard), Bs3799, MSS SP 79, JIS B2302, MSS-SP-97 (Threadolet), MSS-SP-83 (Union), ASME B36.19 (Nipple) |
| Types Of Thread | NPT Fittings, BSPP Fittings, BSPT Fittings, PF Fittings, PT Fittings, MPT Fittings |
| Applications | Oil and Gas Chemical Power station Water Pipeline Noncritical Applications Fire Protection |
| Advantages Of | Simple Usage Easy installation Economic as cheaper |
F22 alloy steel is composed of 2.25% chromium, 1% molybdenum, and has low carbon content. It offers tensile strength ~585 MPa, yield strength ~415 MPa, and high creep resistance. Normalizing and tempering processes enhance these properties, and hence, it can be applied at high temperatures. The steel also has fair corrosion resistance, good toughness, and high thermal stability, providing long life under cyclic pressure and heat operations.
| Gr | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F22 Forged Fittings | 0.15 | 0.3 – 0.6 | 0.5 – 1 | 0.03 | 0.03 | 8 – 10 | 0.9 – 1.1 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F22 Forged Fittings | 380 | 585 | 20 |
Nguyen Fittings is a leading supplier of Alloy Steel F22 Forged Fittings in Da Nang, Vietnam. We offer an extensive range of Alloy Steel F22 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Alloy Steel F22 Forged Fittings from Nguyen Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Alloy Steel F22 Forged Fittings offer several advantages, including exceptional strength and durability, making them ideal for high-pressure and high-temperature applications. Their excellent resistance to corrosion, oxidation, and wear ensures longevity in harsh environments. The fittings provide superior weldability and machinability, allowing easy installation and customization. With a balanced chemical composition, they deliver reliable performance in critical applications such as power plants, petrochemical industries, and marine systems. Additionally, their cost-effectiveness and compatibility with diverse industrial systems make Alloy Steel F22 Forged Fittings a preferred choice for demanding operations.
Yes, custom sizes for Alloy Steel F22 Forged Fittings are available at Nguyen Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@nguyenfittings.com.
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
| ASTM A182 F22 Forged Fittings | K21590 | 1.7380 | 2-1/4Cr-1/2Mo-Vd |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A | Center to End 45 Deg Elbow C | O.D. of Band H | Min. Wall Thick. G | Length of Thread. Minimum (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Alloy Steel F22 Forged Fittings are employed in nuclear plants, petrochemical reactors, superheaters, and steam lines. They are well suited for piping systems requiring high pressure and high temperature, especially where corrosion and thermal cycling create problems. F22 fittings are especially used in hydrocarbon processing, heat exchanger systems, valve assemblies, and fertilizer production. Their strength of metal and metallurgical stability render them essential in applications that require superior creep rupture strength and minimal thermal degradation during prolonged service life.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
