Nguyen Fittings and Plates is a well-known supplier of Alloy 20 Forged Fittings. These fittings are perfect for acidic and corrosive environments, especially those involving sulfuric acid. Made according to ASTM B564 and ASME B16.11 standards, our forged fittings (socket weld and threaded) resist pitting, chloride stress corrosion, and acid attack. Alloy 20 is a nickel-iron-chromium superalloy that offers a balance between the performance of stainless steel and high-nickel alloys. We precision-engineer our fittings for use in chemical, petrochemical, pharmaceutical, and power generation industries where material stability and resistance to corrosion are crucial.
| Forged Fittings Specifications | ASTM B462/ ASME SB462 |
|---|---|
| Alloy 20 Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Alloy 20 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Alloy 20 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B462 Alloy 20 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Alloy 20 Forged Fittings Thread | NPT, BSPT, BSPP |
| Alloy 20 Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy 20 Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
Alloy 20 contains nickel (about 32–38%), chromium (19–21%), iron (the remainder), along with copper (3–4%), molybdenum (around 2%), and niobium for stabilization. It provides a tensile strength of 550–620 MPa and a yield strength of 240 MPa, along with excellent resistance to sulfuric acid and chloride corrosion. It preserves its mechanical integrity in both normal and high-temperature settings. These fittings are also easy to weld, form, and maintain precise dimensions, which makes them suitable for harsh media.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
Nguyen Fittings is a leading supplier of Alloy 20 Forged Fittings in Da Nang, Vietnam. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
Alloy 20 Forged Fittings from Nguyen Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy 20 Forged Fittings offer exceptional advantages, particularly in challenging industrial environments. They provide outstanding resistance to corrosion, especially against sulfuric, phosphoric, and nitric acids, making them ideal for chemical and pharmaceutical industries. Their excellent mechanical properties ensure high strength, durability, and ease of fabrication. With superior resistance to pitting, crevice corrosion, and stress corrosion cracking, they excel in harsh environments like marine and petrochemical applications. Additionally, their ability to maintain performance across a wide temperature range enhances reliability, ensuring a cost-effective, long-lasting solution for demanding industrial processes.
| ASTM B462 / B462M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Alloy 20 Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Alloy 20 fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| Products | Size | |
|---|---|---|
| ASTM B462 Alloy 20 90° Elbow | ASTM B462 Alloy 20 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM B462 Alloy 20 Forged Tee | ASTM B462 Alloy 20 Union | |

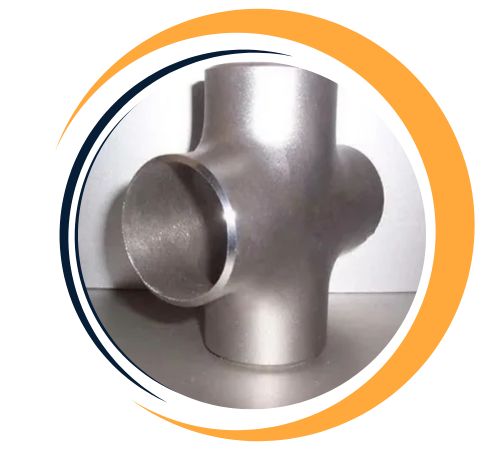

| ASTM B462 Alloy 20 Forged Cross | ASTM B462 Alloy 20 Insert | |
| ASTM B462 Alloy 20 Screwed Bushing | ASTM B462 Alloy 20 Threaded Pipe Nipple | |
| ASTM B462 Alloy 20 Forged Socket weld Cap | ASTM B462 Alloy 20 Screwed Coupling | |
| ASTM B462 Alloy 20 Forged Plug | ASTM B462 Alloy 20 Street Elbow | |
Yes, custom sizes for Alloy 20 Forged Fittings are available at Nguyen Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@nguyenfittings.com.
Alloy 20 forged fittings are used in various sectors, including chemical processing, acid manufacturing, pharmaceutical plants, food and beverage industries, and plastic production. They work well in systems dealing with sulfuric acid, nitric acid, phosphoric acid, and chloride-containing solutions. Common applications include pressure vessels, reactor piping, heat exchangers, and storage tanks. The alloy’s strong resistance to corrosion helps extend equipment lifespan and lowers maintenance needs in challenging chemical environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
